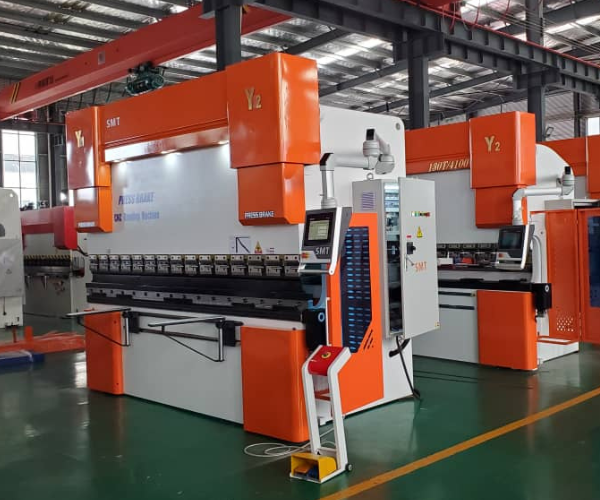

CNC Press Brake Machine

CNC Hydraulic Press Brake machines are essential for precision metal bending in modern fabrication industries. Designed for high efficiency, repeatability, and safety, these machines use electro-hydraulic systems combined with CNC controllers to perform complex bends in sheet metal with extreme accuracy. They’re widely used in automotive, aerospace, construction, HVAC, and custom metal fabrication.

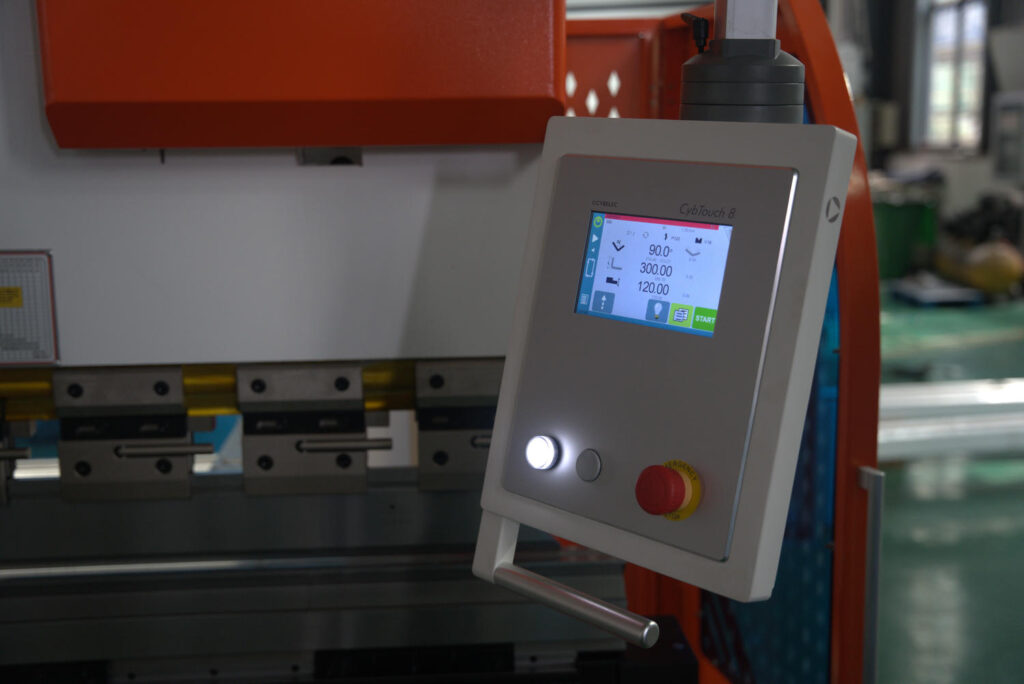

DELEM DA-53T CNC control unit

5 axis CNC Y1 Y2 XR + Crowning Axis
Y1, Y2 precision ram positioning
Standard BGA-2 for X, R-axis (X=600mm,R=150mm)
CNC motorized crowning table (Table Width 100mm)
REXROTH hydraulic valve block, Sunny Oil Pump
High Siemens efficiency motor-class IE3
Stand By Function for energy-saving drive.
Rear cover: Safety barriers (Category IV)
Sheet metal frontal supports
Front and rear lighting

DELEM 58T 69T or Cybelec CT12 or ESA Automation

CE Defender Lazer Safe LZS004 + safety covers with switch
CE F. AKAS-LC II AKAS-3 M Motorized + FPSC (safety PLC)
BGA-4 for X,R, Z1, Z2 axis
BGA-6 for X 1, X2, R1, R2,Z1, Z2 axis
Delta X5 axis ± 125 mm with CNC Controlled
X axis = 1000 mm - light barrier back protection
AP3-AP4 sheet following system
Height adjustable laser angle measurement system
Hydraulic and pneumatic tool clamping systems
Additional back gauge finger & sliding front support arms
Optional Offline software Delem Profile-TL
Optional Front cover: AKAS LC-II F safety laser (Category IV) or DSP safety

Advantage

Specification

Scroll right to see more >>

Model	Bending Force	Bending Length	Oil Tank	Aprroaching Speed	Bending Speed	Return Speed	Backgauge Stroke	Backgauge speed	R axis stroke	Z axis speed	R axis speed	Distance between column	Throat Depth	Ram Stroke	Daylight	Table Height	Main Motor Power	Servo Main Motor Power	Side Frame Wall Thickness	Table Thickness	Ram Thickness	Front Support Arm	Stop Finger Quantity	Weight	Default Bottom Die Style	Default Table Width	Dimension
	KN	mm	L	mm/s	mm/s	mm/s	mm	mm/s	mm	mm/s	mm/s	mm	mm	mm	mm	mm	kw	kw	mm	mm	mm			Ton		mm	mm
40T/1600	400	1600	180	200	13	160	600	350	200	480	200	1200	400	150	450	805	4	5.5	40	40	40	2	4	3.8	2V Rail Die	90	200016002000
63T/200	630	2000	270	200	13	160	600	350	200	480	200	1600	400	170	450	805	5.5	5.5	40	50	50	2	4	4	2V Rail Die	90	310016002500
80T/2500	800	2500	270	200	12	160	600	350	200	480	200	1900	400	200	460	845	7.5	8.5	40	60	50	2	4	5.5	2V Rail Die	90	310016002600
80T/3200	800	3200	360	200	12	160	600	350	200	480	200	2600	400	200	460	845	7.5	8.5	40	60	50	2	4	6	2V Rail Die	90	350016002600
100T/2500	1000	2500	300	200	12	160	600	350	200	480	200	1900	400	200	480	875	7.5	8.5	50	70	60	2	4	6.2	2V Rail Die	90	310018002600
100T/3200	1000	3200	380	200	12	160	600	350	200	480	200	2600	400	200	480	875	7.5	8.5	50	70	60	2	4	7.2	2V Rail Die	90	350018002600
125T/3200	1250	3200	380	200	10	160	600	350	200	480	200	2600	400	200	480	925	11	17.8	50	80	60	2	4	7.7	2V Rail Die	90	350018002700
125T/4100	1250	4100	540	200	10	160	600	350	200	480	200	3600	400	200	480	925	11	17.8	50	80	60	2	4	9	2V Rail Die	90	475018002700
170T/3200	1700	3200	380	160	10	100	600	350	200	480	200	2600	400	200	480	955	11	17.8	60	90	70	2	4	9.4	2V Rail Die	90	350020002800
170T/4100	1700	4100	540	160	10	100	600	350	200	480	200	3600	400	200	480	955	11	17.8	60	90	70	2	4	10.8	2V Rail Die	90	475020002800
220T/3200	2200	3200	380	160	9	100	600	350	200	480	200	2600	400	200	480	955	15	21.4	60	100	70	2	4	10.5	2V Rail Die	90	350022002850
220T/4100	2200	4100	540	160	9	100	600	350	200	480	200	3600	400	200	480	955	15	21.4	60	100	70	2	4	11.8	2V Rail Die	90	475022002850
250T/3200	2500	3200	520	100	8.5	100	600	350	200	480	200	2600	400	250	530	1045	18.5	22	70	100	80	2	3	13.5	130 mm multi V	260	350022003120
250T/4100	2500	4100	750	100	8.5	100	600	350	200	480	200	3600	400	250	530	1045	18.5	22	80	110	90	2	4	15.3	130 mm multi V	260	475022003120
320T/3200	3200	3200	600	80	8.5	80	600	350	200	480	200	2600	400	250	570	1095	22	25	80	120	90	2	4	15.5	150 mm multi V	300	350022003200
320T/4100	3200	4100	900	80	8.5	80	600	350	200	480	200	3400	400	250/300	570	1095	22	25	80	120	90	2	4	17.5	150 mm multi V	300	465025003200
320T/6000	3200	6000	1350	80	8.5	80	600	350	200	480	200	5000	400	250/300	570	1095	22	25	80	140	90	2	6	26	150 mm multi V	300	630025003200
400T/4100	4000	4100	900	80	8	80	600	350	200	480	200	3400	500	325	630	1095	30	32	100	160	100	2	4	24.5	180 mm multi V	360	465027003500
400T/5000	4000	5000	1000	80	8	80	600	350	200	480	200	4000	500	325	630	1095	30	32	100	160	100	2	5	30	180 mm multi V	360	530027003500
400T/6000	4000	6000	1600	80	8	80	600	350	200	480	200	5000	500	325	630	1095	30	32	100	140	100	2	6	31	180 mm multi V	360	630027003500
