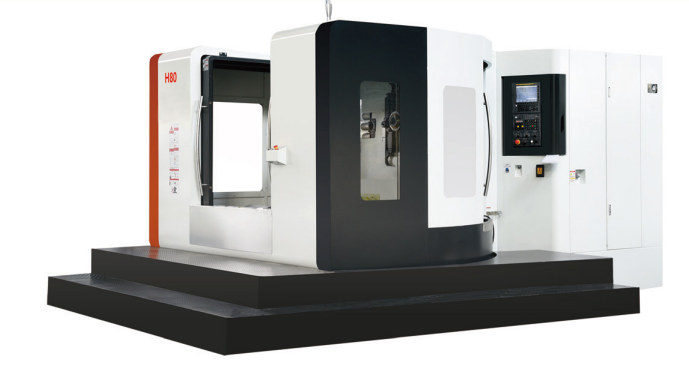

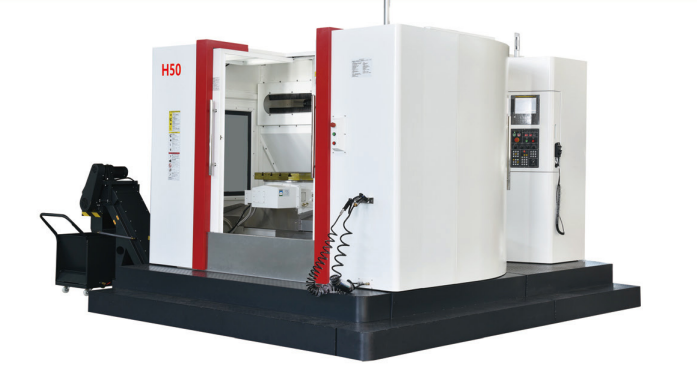

Horizontal Machining Center

H50/H63/80/100

Horizontal Machining Center (H50/H63/80/100) is a high-performance CNC machine designed for precision milling, boring, drilling, and tapping operations. Built with a rigid inverted T-shaped structure and advanced spindle technology, it ensures excellent stability, accuracy, and productivity—ideal for industries like automotive, aerospace, molds, and general engineering.

Enquire Now
Download Brochure

Features

  • Rigid Structure Design- Inverted T-shaped moving column design ensures high rigidity and stability.
  • High-Quality Castings- Resin sand casting provides excellent accuracy retention and durability.
  • BT50 Spindle with Protection- Equipped with ring spray spindle and air curtain protection to prevent dust and coolant damage.
  • Efficient Cooling System- Spindle oil return cooling enhances accuracy and extends spindle life.
  • Advanced Chip Management- Dual spiral chip conveyor with automatic chain system for efficient chip removal.
  • High Precision Ball Screws- Pre-stretched structure eliminates backlash and thermal deformation.
  • Heavy-Duty Linear Guideways- Imported roller guide rails (V3 preload) for high load capacity and stable precision.
Item Unit H50 H63 H80 H100
Control system – FANUC/oi-MD FANUC/oi-MD FANUC/oi-MD FANUC/oi-MD
Table size (L × W) mm 500 × 500 630 × 700 800 × 800 1000 × 1000
Number of tables – 1 1/2 1/2 1/2
Table indexing – 1 × 360 1 × 360 1 × 360 1 × 360
Work surface form/size – – 24 × M16 Screw hole / 15-22 × 125 – –
Maximum load of table kg 450 1000 1500 1500
X axis travel mm 700 1050 1300 1600
Z axis travel mm 530 900 1000 1000
Y axis travel mm 600 750 1000 1000
Distance from spindle center line to table surface mm 130–730 120–870 120–1120 120–1120
Distance from spindle face to center of table mm 150–680 130–1030 200–1200 200–1200
Taper of spindle – BT40 BT50 BT50 BT50
Maximum spindle speed r/min 8000 6000 6000 6000
Fast moving speed (X, Y, Z) mm/min 24000 24000 16000 16000
Maximum speed of turntable r/min 10 10 10 10
Tool storage capacity – 24 24/30/42 24/30/42 24/30/42
Tool selection method – Random Random Random Random
Maximum workpiece diameter mm 700 1380 1600 1750
Maximum tool weight kg 8 15/25 15/25 15/25
Tool change time (knife to knife) s 3.5s 3.5s 3.5s 3.5s
Spindle motor kW 15 18.5 22 22
Positioning accuracy mm 0.01 (Whole journey)
Repeated positioning accuracy mm 0.006 (Whole journey)
Machine weight kg 5000 12000 18000 20000
Packing box (with external protection) mm 3300 × 3200 × 2200 5200 × 3700 × 2800 5900 × 4600 × 3000 5900 × 5000 × 3000
