Double Columns Machining Center

Fixed Beam Gantry Machining Center

GMC13/16/18/22/27/32

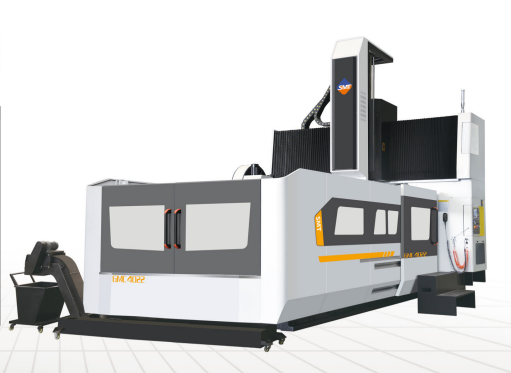

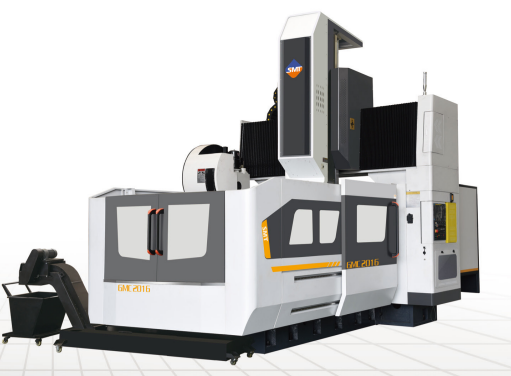

GMC fixed beam CNC gantry machining center equipped with milling, boring(drilling, expansion, hinge), tapping, countersink and other processing functions. For the different characteristic of customers, optional full closed loop optical scale detection system, tool center cooling function, ATC robot hand style, automatic workpiece measurement, tool automatic measurement, 4-axis linkage processing and other functions, customers can enjoy excellent cost-effective configuration, satisfied with the intimate products. The products specifications and configuration of the leading domestic product structure and technology is mature, product quality and stability, machine torque, fast response characteristics, suitable for automotive, mold, aerospace, packaging, hardware and other mechanical processing needs.

Enquire Now
Download Brochure

Features

  • FANUC system
  • Water tank cooling device
  • Automatic lubrication
  • Outer shield
  • The spindle taper vent blower
  • Hold the air gun
  • Control electrical cabinet
  • Transformer
  • Electrical cabinet heat exchange
  • Hand pulse generator
  • Working lamp
  • Three-color waming light
  • LCD monitor
  • Tools, toolbox
  • Operation manual

GMC13/16

Category Parameter Unit GMC1013 GMC2013 GMC2016 GMC2516 GMC3016
Table size Max capacity kg 2000 3000 4000 5000 6000
Table size X/Y/Z travel mm 1000/1300/500 2000/1300/800 2000/1700/900 2500/1700/900 3000/1700/900
Table size Gantry width mm 1300 1300 1620 1620 1620
Table size Working table size mm 1000×800 2000×1000 2000×1300 2500×1300 3000×1300
Table size T-slot number No. 5 7 7 7 7
Table size T-slot size/pitch mm 18/150 18/133 22/175 22/175 22/175
Hard milling spindle Drive mode Direct/Belt Straight Link Direct Drive Direct Drive Direct Drive
Hard milling spindle Spindle speed rpm 10–12000 10–6000 10–6000 10–6000 10–6000
Hard milling spindle Motor power kw 11/15 15/18.5 18.5/22 18.5/22 18.5/22
Hard milling spindle Distance spindle to table mm 150–650 150–950 200–1100 200–1100 200–1100
Hard milling spindle Spindle taper BT40/BT50 BT50 BT50 BT50 BT50
Hard milling spindle Spindle diameter mm Φ150/Φ155 Φ155 Φ190 Φ190 Φ190
Feed drive Rapid moving speed m/min 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10
Feed drive X/Y Rail 45X (X axis) 45Y (Y axis) 55X (X axis) 45Y (Y axis) 55X (X axis) 55Y (Y axis) 55X (X axis) 55Y (Y axis) 55X (X axis) 55Y (Y axis)
Feed drive Z axis T-type ram/square ram  T-type ram/square ram  T-type ram/square ram  T-type ram/square ram  T-type ram/square ram
Feed drive Ball screw diameter mm 40/40/40 63/50/50 63/50/50 63/50/50 63/50/50
Accuracy Positioning accuracy mm 0.021 0.021 0.021 0.021 0.021
Accuracy Repeat accuracy mm 0.02 0.02 0.02 0.02 0.02
Others ATC (optional)  24/32/40 Automatic tools changer 24/32/40 Automatic tools changer  24/32/40 Automatic tools changer  24/32/40 Automatic tools changer  24/32/40 Automatic tools changer
Others CNC system FANUC/Mitsubishi/Siemens
Others Net weight T 10 16 18 20 23

GMC18/22

Project Unit GMC18 GMC22
GMC2018 GMC2518 GMC3018 GMC3022 GMC4022 GMC5022 GMC6022
Table size Max capacity (kg) 7000 8000 9000 10000 13000 15000 18000
X/Y/Z travel (mm) 2000/1900/900 2500/1900/900 3000/1900/900 3000/2200/1100 4000/2200/1100 5000/2300/1100 6000/2300/1100
Gantry width (mm) 1820 1820 1820 2220 2220 2220 2220
Working table size (mm) 2000×1500 2500×1500 3000×1500 3000×1800 4000×1800 5000×1800 6000×1800
T-slot number 7 7 7 9 9 9 9
T-slot size/pitch (mm) 22/210 22/210 22/210 22/200 22/200 22/200 22/200
Hard milling Spindle Drive mode Direct Belt / Straight Link / Direct drive
Spindle speed (rpm) 10–6000 10–6000 10–6000 10–6000 10–6000 10–6000 10–6000
Motor power (kW) 18.5/22 18.5/22 18.5/22 22/26 22/26 22/26 22/26
Distance from spindle nose to table (mm) 200–1100 200–1100 200–1100 300–1400 300–1400 300–1400 300–1400
Spindle taper BT50 BT50 BT50 BT50 BT50 BT50 BT50
Spindle diameter (mm) Φ190 Φ190 Φ190 Φ190 Φ190 Φ200 Φ200
Feed drive XY rapid speed (m/min) 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10
Z axis T-type ram / Square ram
Ball screw diameter (mm) 63/50/50 63/50/50 63/50/50 63/63/50 80/63/50 100/63/50 100/63/50
Accuracy Positioning accuracy (mm) 0.021 0.021 0.021 0.021 0.021 0.021 0.021
Repeat accuracy (mm) 0.02 0.02 0.02 0.02 0.02 0.02 0.02
ATC (optional) Automatic tools changer
CNC system FANUC / Mitsubishi / Siemens
Net weight (T) 20 23 26 35 42 50 60

GMC27/32

Project Unit GMC18 GMC22
GMC2018 GMC2518 GMC3018 GMC3022 GMC4022 GMC5022 GMC6022
Table size Max capacity (kg) 7000 8000 9000 10000 13000 15000 18000
X/Y/Z travel (mm) 2000/1900/900 2500/1900/900 3000/1900/900 3000/2200/1100 4000/2200/1100 5000/2300/1100 6000/2300/1100
Gantry width (mm) 1820 1820 1820 2220 2220 2220 2220
Working table size (mm) 2000×1500 2500×1500 3000×1500 3000×1800 4000×1800 5000×1800 6000×1800
T-slot number 7 7 7 9 9 9 9
T-slot size/pitch (mm) 22/210 22/210 22/210 22/200 22/200 22/200 22/200
Hard milling Spindle Drive mode Direct Belt / Straight Link / Direct drive
Spindle speed (rpm) 10–6000 10–6000 10–6000 10–6000 10–6000 10–6000 10–6000
Motor power (kW) 18.5/22 18.5/22 18.5/22 22/26 22/26 22/26 22/26
Distance from spindle nose to table (mm) 200–1100 200–1100 200–1100 300–1400 300–1400 300–1400 300–1400
Spindle taper BT50 BT50 BT50 BT50 BT50 BT50 BT50
Spindle diameter (mm) Φ190 Φ190 Φ190 Φ190 Φ190 Φ200 Φ200
Feed drive XY rapid speed (m/min) 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10 12/12/10
Z axis T-type ram / Square ram
Ball screw diameter (mm) 63/50/50 63/50/50 63/50/50 63/63/50 80/63/50 100/63/50 100/63/50
Accuracy Positioning accuracy (mm) 0.021 0.021 0.021 0.021 0.021 0.021 0.021
Repeat accuracy (mm) 0.02 0.02 0.02 0.02 0.02 0.02 0.02
ATC (optional) Automatic tools changer
CNC system FANUC / Mitsubishi / Siemens
Net weight (T) 20 23 26 35 42 50 60
