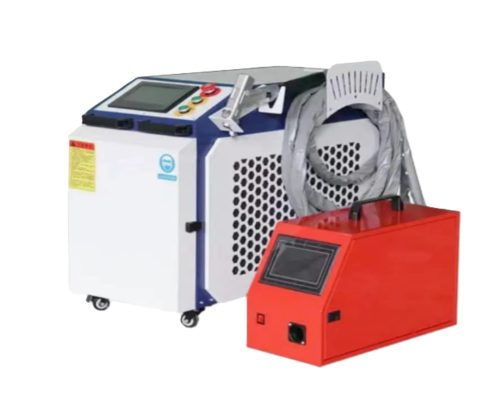

The Handheld Laser Welding Machine (1–6 kW) delivers high-speed, precise welding with clean, strong joints and minimal distortion. Its low heat input reduces warping, while the user-friendly design ensures easy operation. Compatible with multiple materials, it offers cost-efficient performance, making it ideal for fabrication, automotive, structural, furniture, and electrical panel applications.
| 🔧 Technical Specifications – Handheld Laser Welding Machine (1kW–3kW) | |
| Parameter | Details |
| Power Options | 1 kW / 1.5 kW / 2 kW / 3 kW / 6 kW |
| Laser Type | Fiber Laser |
| Wavelength | 1080 nm |
| Max Output Power | 1 kW / 1.5 kW / 2 kW / 3 kW / 6 kW |
| Modulation Frequency | 1 – 20 kHz |
| Red Light Indication Power | 0.5 – 1 mW |
| Fiber Cable Length | 10 meters |
| Fiber Core Diameter | 50 µm |
| Total Power Consumption | 7.5 kW (1 kW)8.5 kW (1.5 kW)10 kW (2 kW)12–13 kW (3 kW approx.) |
| Rated Voltage | 220V AC, 50Hz (1–1.5 kW)380V AC, 50Hz (2–3 kW) |
| Cooling Method | Water Cooling |
| Gross Weight | ~270–300 kg |
| Machine Dimensions (L×W×H) | 625 × 1090 × 1746 mm |
