| 🔹 Vertical Spindle Design |
| Gravity-assisted vertical turning orientation for improved stability and part support. |
| Ideal for heavy workpieces such as brake drums, turbines, bearings, and gear blanks. |
| 🔹 High-Torque Main Spindle |
| Heavy-duty gearbox-driven or direct-drive spindles for high torque at low speeds. |
| Supports large-diameter parts and difficult materials like cast iron and alloy steel. |
| 🔹 CNC Controller |
| Advanced control systems such as Fanuc, Siemens, or GSK with multi-axis support. |
| Easy-to-use interface for toolpath programming, G-code execution, and tool offsets. |
| 🔹 Rigid Machine Structure |
| Box-type column and heavy cast iron base for vibration absorption and cutting stability. |
| Precision guideways ensure smooth and accurate movement of the carriage. |
| 🔹 Live Tooling (Optional) |
| Optional live tooling and C-axis for drilling, tapping, and milling on the same setup. |
| Enables multi-tasking capabilities and reduced cycle times. |
| 🔹 Automatic Tool Changer (ATC) |
| Rotary or linear tool changers with 8–24 tool positions for flexible and efficient production. |
| 🔹 Enclosure and Chip Management |
| Fully enclosed structure with chip conveyor, coolant system, and safety interlocks. |
| Keeps the workspace clean and enhances operator safety. |
| 🔹 Servo Turret |
| High-speed servo indexing turret with fast tool change and repeatability. |
| Feature / Model | CVL-850 | CVL-1250 | CVL-1600 | CVL-2000 Plus |
| Max Swing Diameter | 850 mm | 1250 mm | 1600 mm | 2000 mm |
| Max Turning Diameter | 800 mm | 1200 mm | 1550 mm | 1950 mm |
| Max Workpiece Height | 700 mm | 1000 mm | 1200 mm | 1400 mm |
| Max Workpiece Weight | 1000 kg | 3000 kg | 5000 kg | 8000 kg |
| Table Diameter | 630 mm | 1000 mm | 1250 mm | 1600 mm |
| Spindle Motor Power | 15 kW | 22 kW | 30 kW | 37 kW |
| Spindle Speed Range | 5–600 rpm | 3–400 rpm | 3–300 rpm | 2–250 rpm |
| X/Z Axis Travel | 500 / 700 mm | 750 / 1000 mm | 900 / 1200 mm | 1200 / 1500 mm |
| Control System | Fanuc 0i-TF / Siemens | Fanuc / Siemens / GSK | Fanuc 0i-TF Plus | Siemens 828D / Fanuc 31i-B |
| Tool Turret Type | 8-Station Servo Turret | 12-Station Turret | 12-Station with Live Tools | 16-Station with C-Axis (Opt.) |
| Live Tooling / Milling | Optional | Optional | Yes (with C-axis) | Yes (Full Multi-tasking) |
| Automatic Tool Changer | Optional (8 Tools) | Yes (12 Tools) | Yes (12–16 Tools) | Yes (16–24 Tools) |
| Machine Weight | 6000 kg | 9000 kg | 12000 kg | 16000 kg |
| Machine Dimensions (L×W×H) | 2500 × 2100 × 2800 mm | 3200 × 2700 × 3200 mm | 3800 × 3000 × 3500 mm | 4500 × 3500 × 4000 mm |

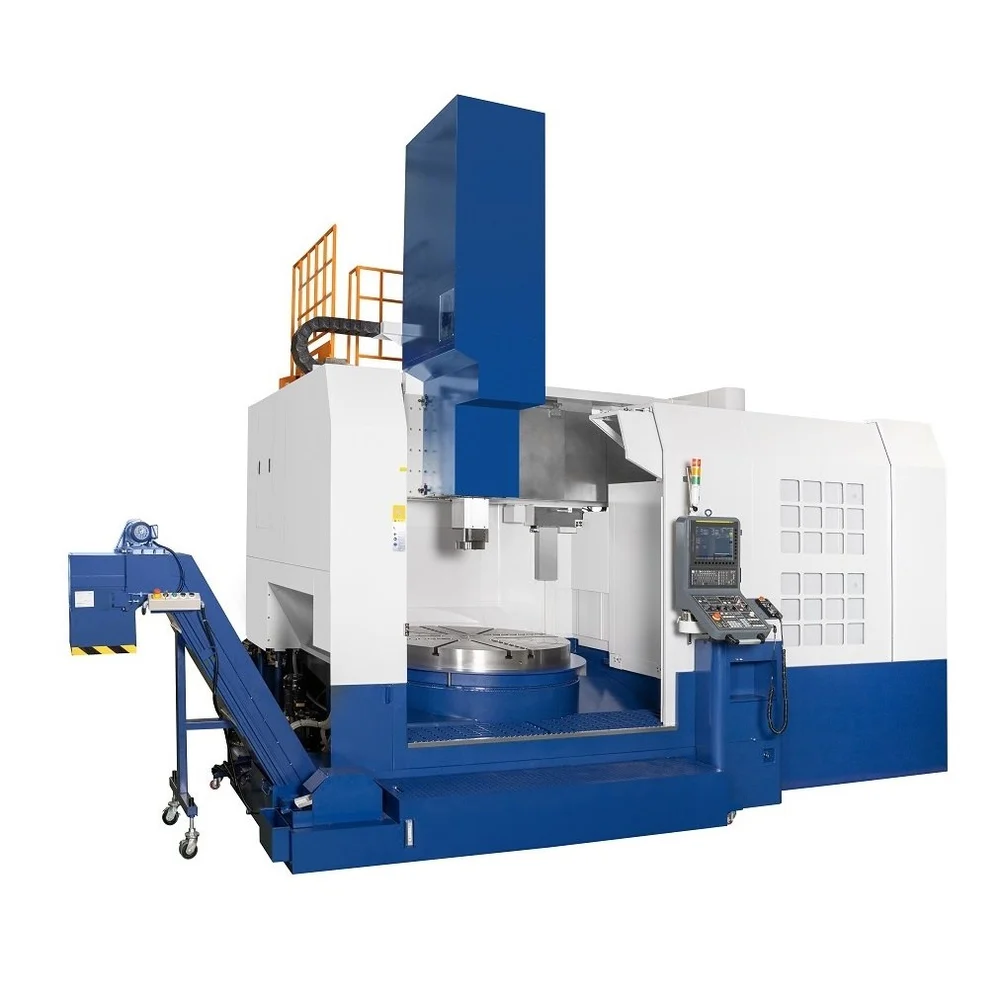

CNC Vertical Lathes are specially designed for machining large, heavy, and asymmetrical components that are difficult to handle on horizontal lathes. With the spindle positioned vertically, these machines offer better support for heavy workpieces and allow for precise turning, boring, facing, grooving, and taper cutting.
The Laser Cutting Machine with Integrated Tube Cutting and Automatic Pallet Changer is a high-performance,

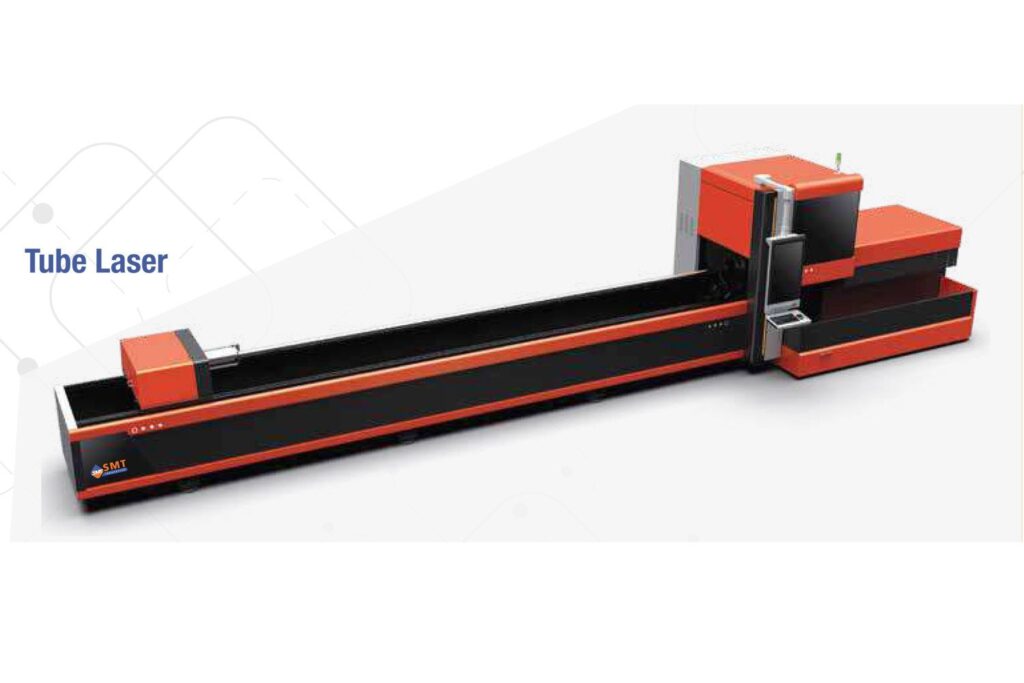

Sheet and Tube Laser Cutting Machines combine the power of flat sheet cutting with integrated

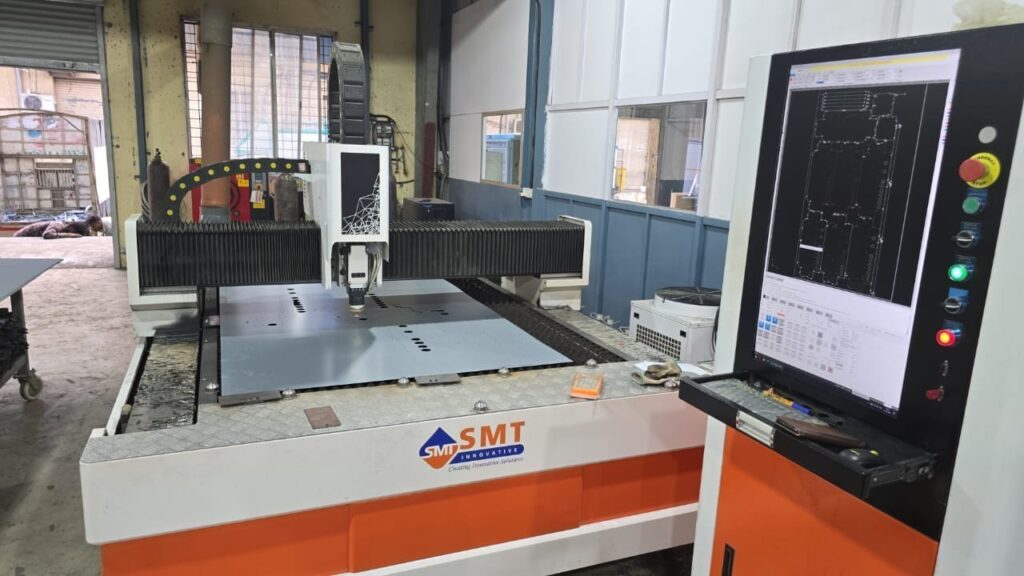

The High Precision CNC Fiber Laser Cutting Machine is engineered for ultra-accurate cutting of fine
