| 🔹 2-in-1 Sheet & Tube Cutting |
| Cuts flat sheets and round, square, rectangular, and oval tubes in a single machine. |
| Eliminates the need for separate machines — saving floor space and investment. |
| 🔹 Automatic Pallet Changer System |
| Dual shuttle tables for fast material loading/unloading. |
| Cycle time reduced significantly — perfect for mass production. |
| 🔹 High-Power Fiber Laser Source |
| Power options from 1kW to 12kW+. |
| Brands: Raycus, MAX, IPG, nLIGHT. |
| 🔹 CNC Control System |
| User-friendly control with FSCUT3000, CypCut TubePro, or Beckhoff. |
| Supports nesting, auto focus, edge detection, and real-time monitoring. |
| 🔹 Auto-Focus Laser Cutting Head |
| RayTools / Precitec / WSX for dynamic focusing based on material thickness. |
| Enables clean, fast cutting across varied thicknesses. |

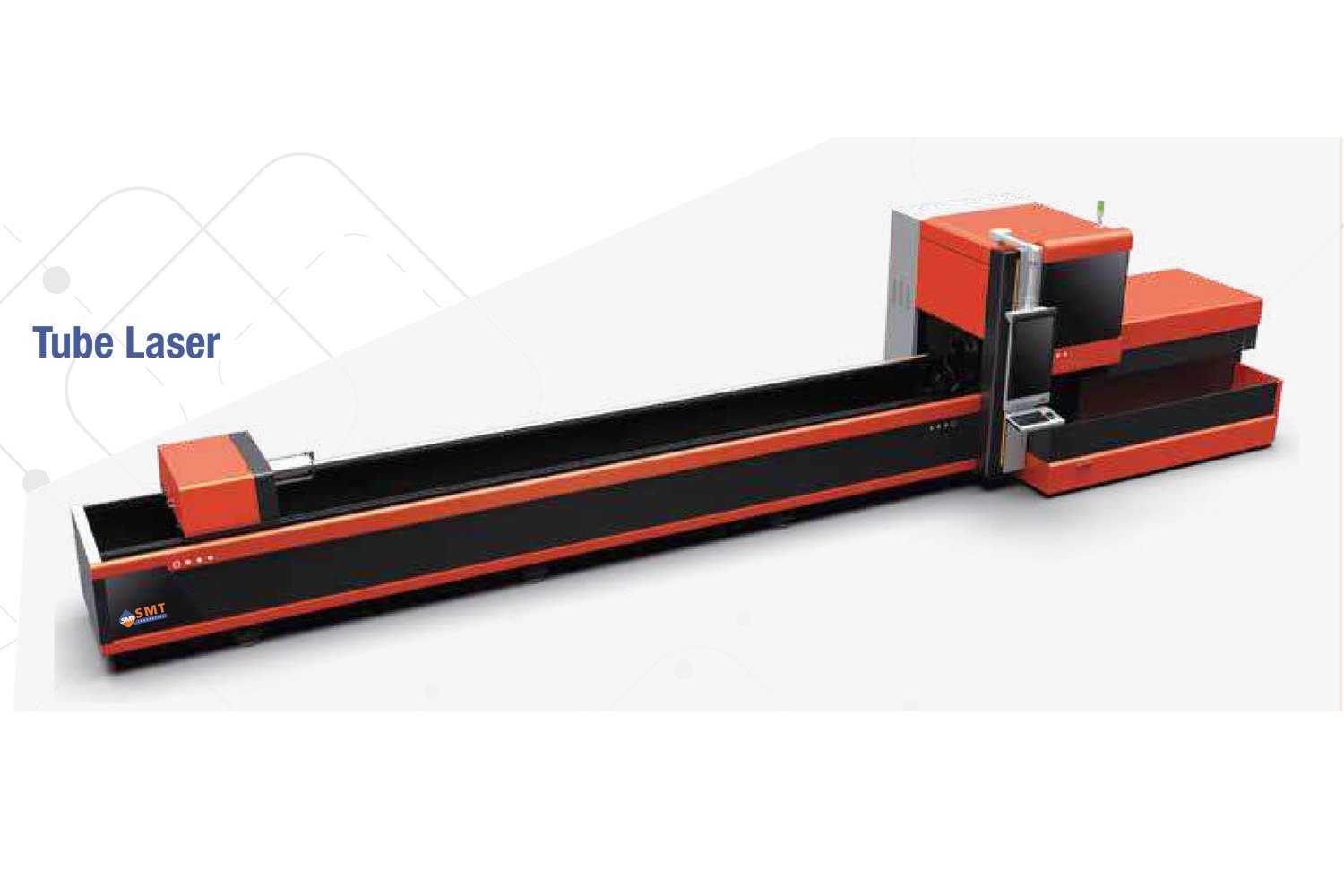

| 🔹 Pneumatic or Servo Tube Clamping |
| Intelligent tube cutting system with pneumatic or servo chucks. |
| Supports round, square, rectangular tubes up to Ø240 mm. |
| 🔹 High Precision & Speed |
| Sheet Positioning Accuracy: ±0.02 mm |
| Tube Rotation Accuracy: ±0.05 mm |
| Max Cutting Speed (sheet): 120 m/min |
| 🔹 Industrial-Grade Build |
| Rigid welded structure with heat treatment and aging for zero deformation. |
| Dual rack and pinion drive with high-speed servo motors. |
| 🔹 Safety & Extraction |
| Fully enclosed design with laser safety glass, fume extraction, and dust collection system. |
| Feature / Model | LTPC-3015 | LTPC-6020 Pro | LTPC-6025 MAX |
| Sheet Cutting Area (mm) | 3000 × 1500 | 6000 × 2000 | 6000 × 2500 |
| Tube Cutting Length | Up to 3000 mm | Up to 6000 mm | Up to 6000 mm |
| Max Tube Diameter | Ø160 mm | Ø220 mm | Ø240 mm |
| Laser Power Options | 1–3 kW | 3–6 kW | 6–12 kW |
| Laser Source Brands | Raycus / MAX | MAX / IPG | IPG / nLIGHT |
| Pallet Changer | Yes (Dual Shuttle Table) | Yes (Fully Enclosed System) | Yes (Heavy-Duty Fast Exchange) |
| Laser Cutting Head | RayTools (Auto Focus) | Precitec ProCutter | Precitec LightCutter / ProCutter |
| Tube Clamping System | Pneumatic Manual Chuck | Servo Dual Pneumatic Chucks | Full Servo Smart Chuck |
| Controller | FSCUT3000 + TubePro | CypCut Elite + TubeNest | Beckhoff + Custom Nesting |
| Positioning Accuracy | ±0.03 mm | ±0.02 mm | ±0.01 mm |
| Max Cutting Speed | 80 m/min | 100 m/min | 120 m/min |
| Chassis Type | Semi-Enclosed | Fully Enclosed | Fully Enclosed with Extractor |
| Machine Dimensions (L×W×H) | 8500 × 2300 × 2200 mm | 13500 × 2800 × 2500 mm | 14200 × 3000 × 2600 mm |
| Machine Weight | 7000 kg | 10500 kg | 12500 kg |
The Laser Cutting Machine with Integrated Tube Cutting and Automatic Pallet Changer is a high-performance, all-in-one solution for modern metal fabrication. Designed for manufacturers who require both sheet and tube cutting, this machine improves production speed with automated pallet exchange, minimizing downtime between jobs.
