| ⚙️ Key Features of Our Surface Grinding Machines |
| 🔹 High-Precision Grinding Head |
| Robust spindle design for stable rotation and consistent grinding. |
| Available in manual, semi-automatic, and fully CNC-controlled models. |
| 🔹 Smooth Table Movement |
| Hydraulic, servo, or manual table drive options. |
| Ensures even, chatter-free grinding on flat surfaces. |
| 🔹 Hardened & Ground Guideways |
| Ensures long-term accuracy with low friction and high durability. |
| 🔹 High Surface Finish |
| Achieves mirror-like surface finishes with Ra values as low as 0.2 µm. |
| 🔹 Adjustable Grinding Parameters |
| Easy-to-control cross feed, down feed, and table speed. |
| 🔹 Magnetic Chuck |
| Powerful electromagnetic chucks or permanent magnet tables. |
| Holds workpieces firmly during grinding operations. |
| 🔹 Dust Extraction & Coolant System |
| Built-in coolant system for heat control and surface quality. |
| Optional dust collection or mist separators for clean operation. |
| 🔹 Safety Features |
| Emergency stop, overload protection, and optional enclosure. |
| Feature / Model | SG-618M | SG-1020AHD | SG-1224NC |
| Table Size (mm) | 460 × 150 | 500 × 250 | 600 × 300 |
| Max Grinding Length (mm) | 450 | 510 | 620 |
| Max Grinding Width (mm) | 150 | 250 | 300 |
| Spindle Motor Power | 1.1 kW | 2.2 kW | 3.7 kW |
| Spindle Speed (RPM) | 2800 | 2800 | 2800 |
| Table Drive | Manual | Hydraulic | Servo (CNC) |
| Crossfeed / Downfeed | Manual | Auto / Manual | CNC Controlled |
| Magnetic Chuck Size | 450 × 150 mm | 500 × 250 mm | 600 × 300 mm |
| Max Table Load | 80 kg | 150 kg | 200 kg |
| Positioning Accuracy | ±0.005 mm | ±0.003 mm | ±0.002 mm |
| Machine Weight (kg) | 850 kg | 1,500 kg | 2,100 kg |
| Dimensions (L×W×H mm) | 1500 × 1000 × 1600 | 1900 × 1200 × 1700 | 2300 × 1300 × 1900 |

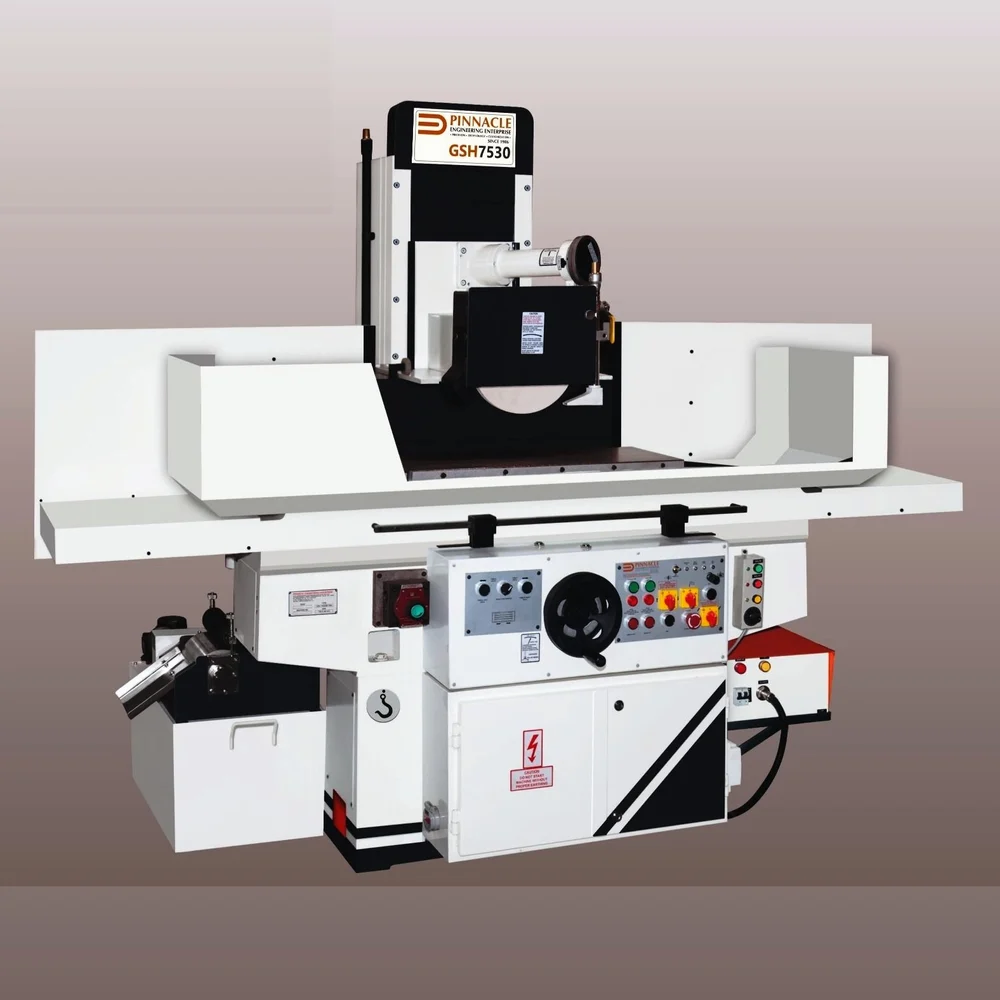

Surface grinding machines are essential tools for achieving precise, smooth finishes on flat surfaces. These machines use a rotating abrasive wheel to remove material from metallic or non-metallic workpieces, ensuring high accuracy and surface quality. Commonly used in toolrooms, die shops, manufacturing plants, and precision engineering industries.
